Lew’s /ABU Revo 2019-2021 P2 Super Pinion Spool Kits
This Lew’s /ABU Revo spool kit fits the latest Lew’s and Revo models with the G2 Super Pinion which is a 5x9x3 on the drive side instead of the 3x10x4, mostly 2019 to present. This bearing replacement is the best performance upgrade you can make ! Thousands upon thousands of SATISFIED Lew’s /ABU Revo users swear by Spool Hi-Speed Bearings.
Any reel box touting “P2 Super Pinion “ takes this kit. See, In early 2019 Lews/ ABU Revo and a few others brands made from the Doyo factory updated their pinion support design. They are utilizing a 5x9x3 pinion support bearing instead of a 3x10x4. Our kits of SS ,XS and the extremely fast Japanese XP and XCR Ultra Spool Hi-Speed Bearings fits this new application. If unsure of your model, unscrew the spool tension adjustment knob and look at the bearing. If it's the same size as the end cap bearing on the opposite side, it takes the older kit. If the bearing center hole in the tensioner side is larger, it takes this new kit. ( If your reels are older, it most likely takes the older 2018 kit.
The older 3 pk kit is used by pre 18 models and most Lew’s and ABU combo packages. )
This 2019- present kit fits a lot of Lew’s offerings now. 2020 Lew's Custom Lite, 19-20 Tournament Pro, the 2025 Custom Pro, BB1 Pro newer Bass Pro Carbonlite 2.0, Johnny Morris Platinum and Quantum S 2019 models to name a few or any P2 Super Pinion model designated on the reels box.

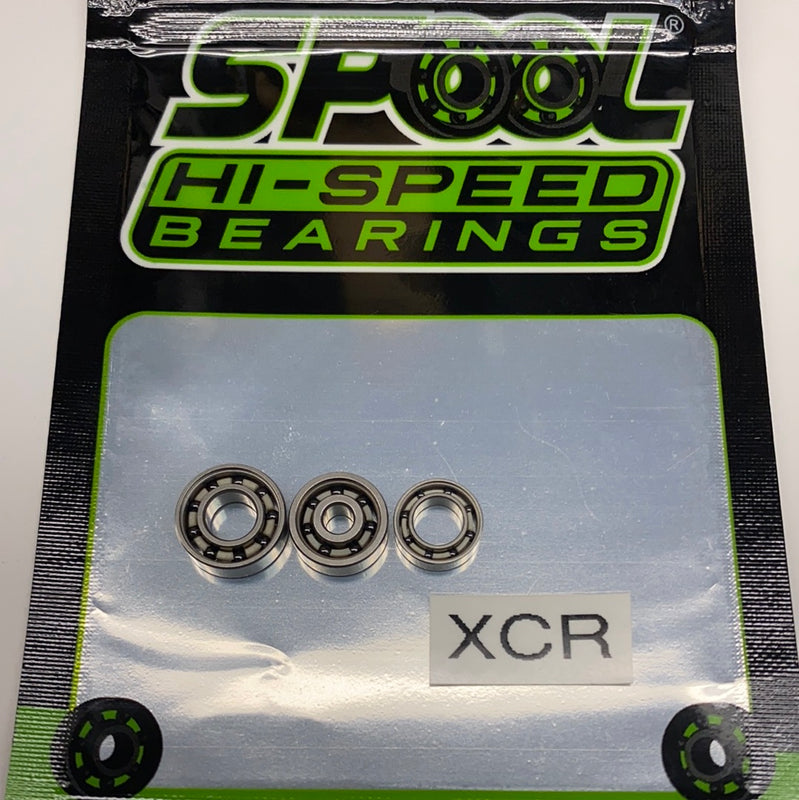

Contains: 3x10x4 for removeable end cap, 5x9x3 under spool tension cap and 5x11x4 on spool-shaft.
(1) 5x11x4 spool shaft bearing
(1) 3x10x4 end cap bearing
(1) 5x9x3 tensioner bearing
Available in:
SS Ceramic- Our original ABEC5 Ceramic that has been in service for many years
XS Ceramic- Stainless Steel sealed ABEC7 Ceramic with ribbon retainers and S20 Ceramic balls
XP Ceramic- Open Hi-Performance ABEC9 Ceramic with Japanese ribbon retainers and S25 Ceramic balls
XCR Ultra- The highest level Performance Bearings available in a fishing reel. ABEC9 With S30 Ceramic balls and PEEK Polyether Ether Ketone ribbon cage/retainer
